LIGHT & MEDIA CHANNEL SYSTEM 5010

LIGHT & MEDIA CHANNEL SYSTEM 5010

  • Flexible: Mounting by integrated T-slot for various suspensions
  • Universal / Flexible: Additional integration of media such as speakers and camera system.
  • Reliable: approved in accordance with DB requirements

Application areas:

  • Platforms
  • Underground passenger transport systems

Technical Data:

Mounting type: Suspension with T-slot
IP Protection class: IP 54
Optical System:

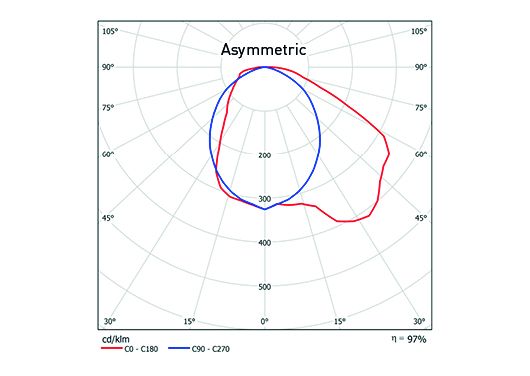

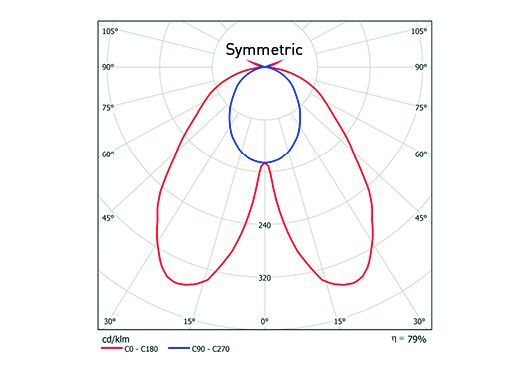

Symmetrical or asymmetrical light distribution
Rated luminous flux:
35 / 49 W
Colour temperature:
3,070 / 4,300 lm
Dimming (power control): -
Electrical protection class:
Protection Class II
Rated voltage / Frequence:
220 – 240 V / 50 – 60 Hz
Light point height:
3 – 4 m

Downloads:

 Technical Datasheet High Module
Technical Datasheet Flat Module


 Eulumdat
 CE-Declaration
